Описание Продукта

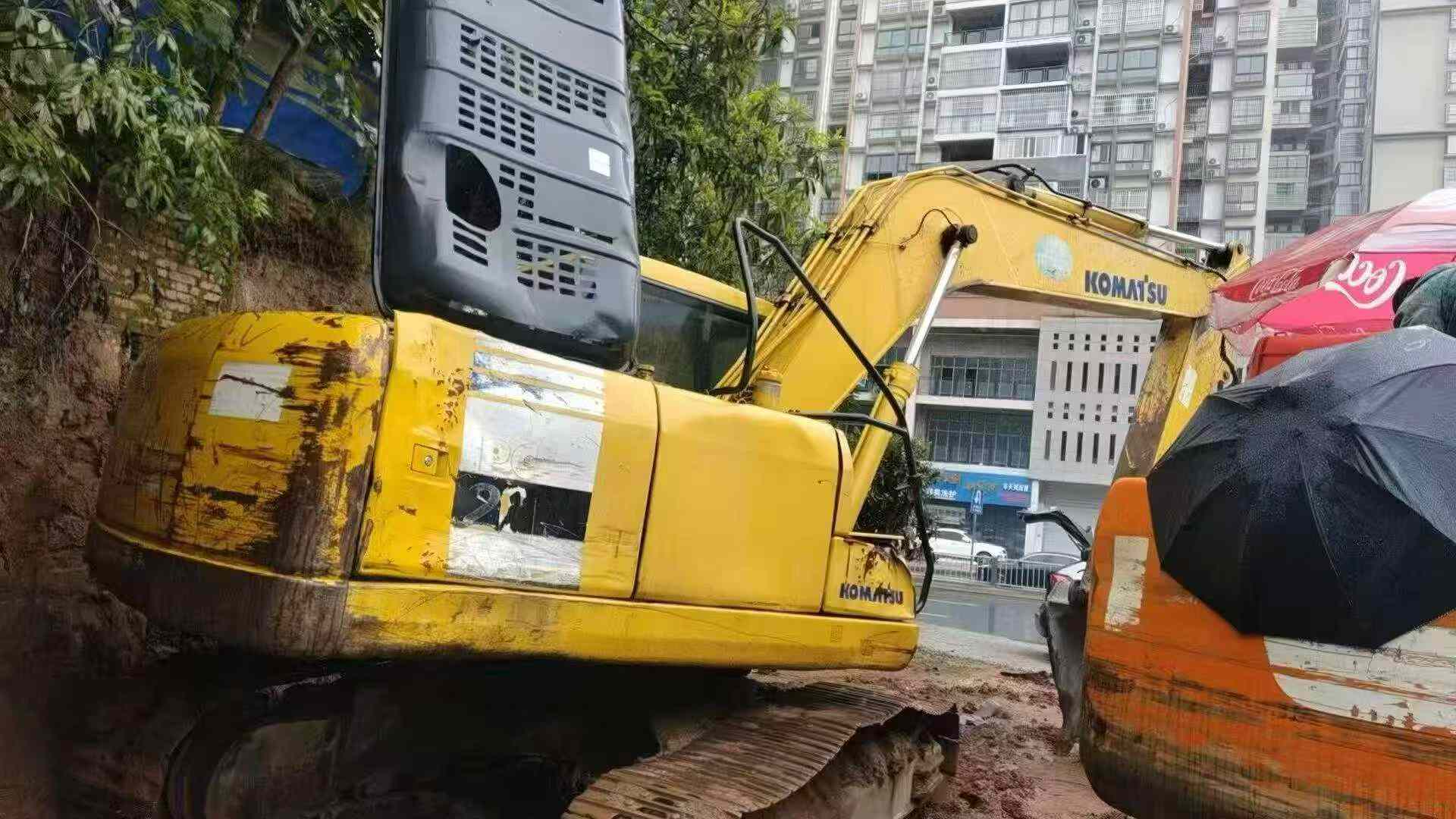

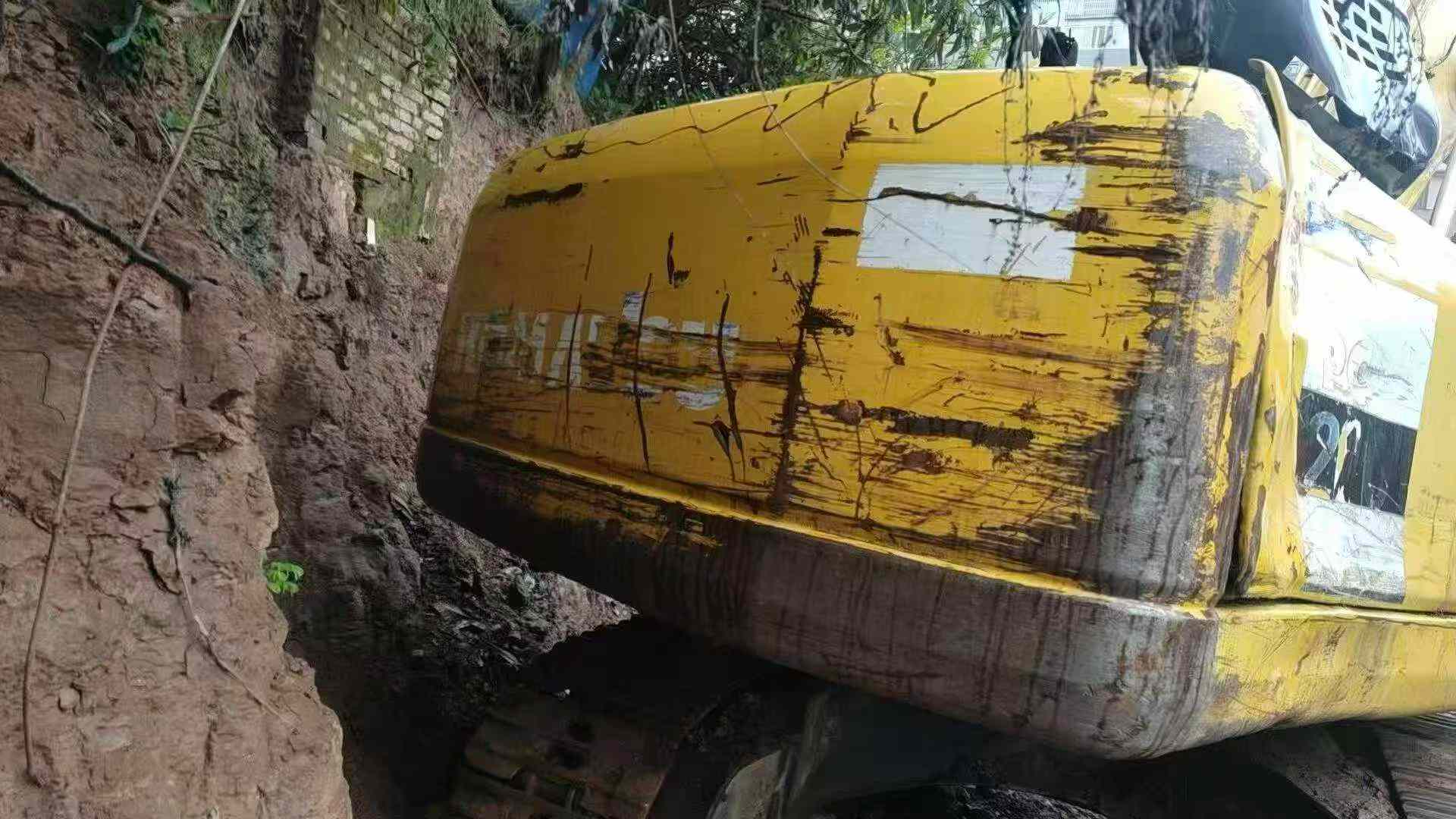

This 2020 Komatsu PC160-7 hydraulic excavator offers reliable performance for contractors and earthmoving operations. Located in Sichuan, China, this machine represents solid value in the mid-size excavator category. The PC160-7 is known for its fuel-efficient engine, robust hydraulic system, and operator comfort features that enhance productivity on construction and excavation sites.
Key features include:
- Proven Komatsu reliability and build quality
- Suitable for medium-duty excavation, trenching, and material handling
- Comfortable operator cabin with good visibility
- Available for inspection in Sichuan, China
- Competitively priced for the current market
This excavator is ready for deployment in construction, infrastructure, or civil engineering projects. Contact us to arrange an inspection or request additional documentation on this unit's service history and current condition.
| Спецификации | Значение |
|---|---|
| No. | 1167632 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 16500 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5150 |
| Rod length (mm) | 2610 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D102E-2 |
| Rated power (kw/rpm) | 82.4/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.92 |
| Working form | 4 cylinder, direct injection, turbocharged, after cooling, mechanical full speed control; Comply with 2001 EPA/EU/ Japan Level 2 emission standards. |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 86.3 |
| Travel speed (km/h) | 3.4-5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 312 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 105 * 1027 * 70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 * 1342 * 85 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 * 1175 * 75 |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 121 |
| Engine Oil changes (L) | 14 |
| Coolant (L) | 17.3 |
| Total transport length (mm) | 8565 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2390 |
| Total track length (mm) | 3965 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 3170 |
| Maximum digging radius (mm) | 8960 |
| Maximum digging depth (mm) | 5960 |
| Maximum excavation height (mm) | 8980 |
| Maximum unloading height (mm) | 6370 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum effective digging depth (mm) | 5740 |
